CT120 Technical Specifacations

Abesco CT120 Cable Transits are used to seal cables which penetrate through up to 4 hour fire-rated concrete block walls and floors, and are suitable for most common types of construction including concrete floors, concrete walls, concrete block walls and gypsum drywall assemblies, and rated wooden floor constructions.

Installation Photos
CT120 Installation

Step 1

Step 1

Cut or form a suitable size opening in the floor or wall, ensuring that any annular space between the CT120 and the opening is within the limits defined by the tested constructions.

Step 2

Slide the CT120 into the previously formed opening, making sure that it is positioned centrally within the thickness of the floor or wall ensuring that an equal length protrudes either side.

Step 2

Step 3

Step 3

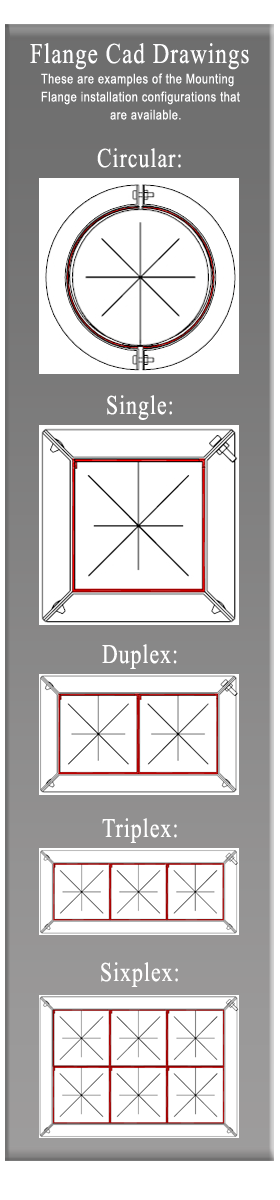

Using the correct size CT Mounting Flanges, open flanges and fit over each end of the CT120. Slide each flange until it is pressed against the surface of the wall or floor. Fit the supplied nut and bolt through the pre formed holes in the corner of each flange and tighten securely.

Step 4

Remove the supplied end plugs and pass the cables through the CT120 and support on either side of wall or floor as required. Re-fit the end plugs into both ends of the CT120 around the cables.

Step 4
UL Classified Systems
UL Systems Photo
